ST4404

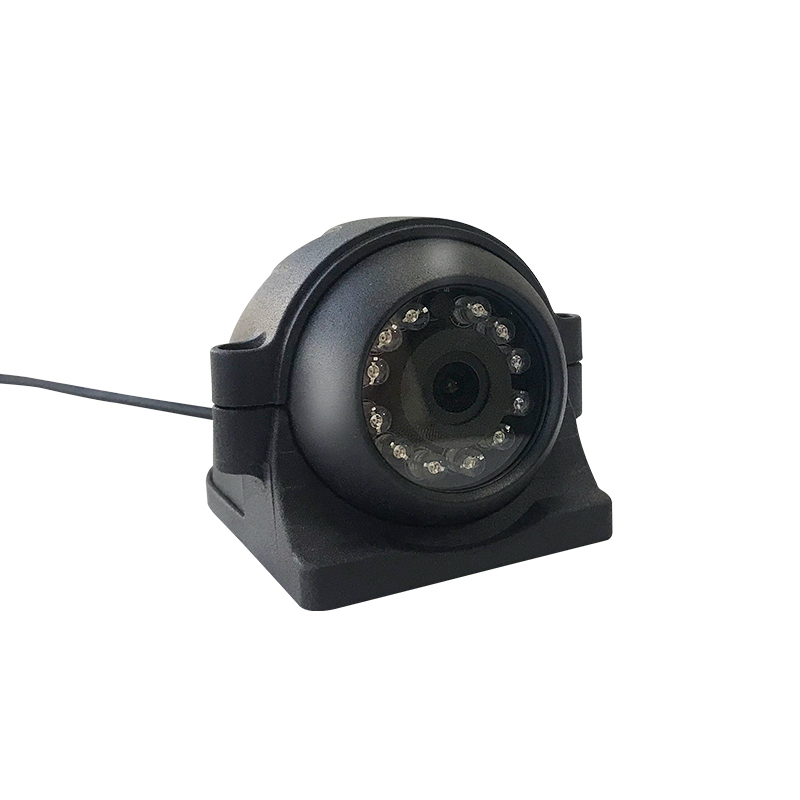

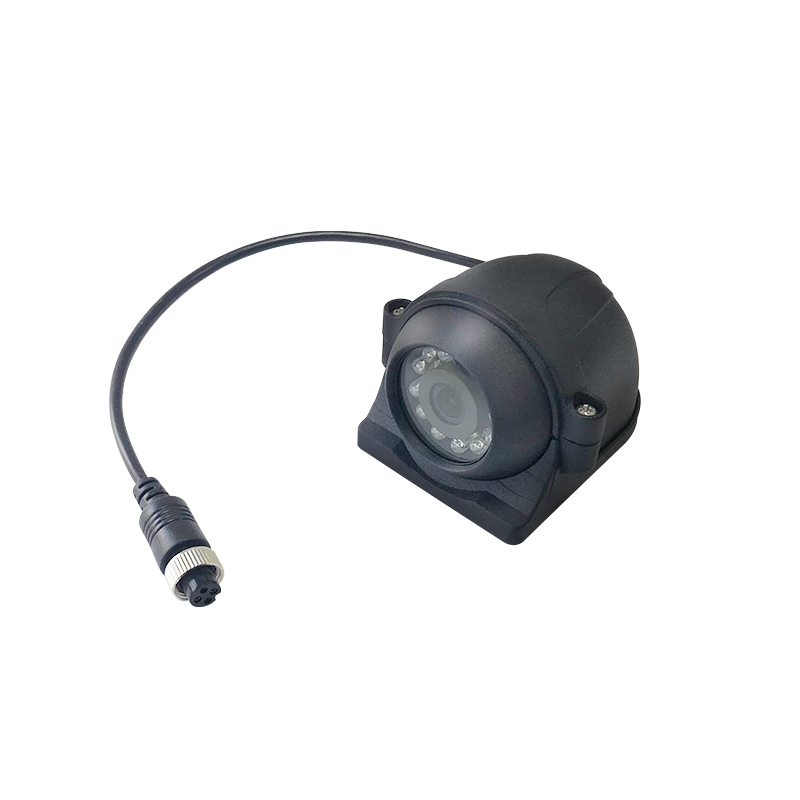

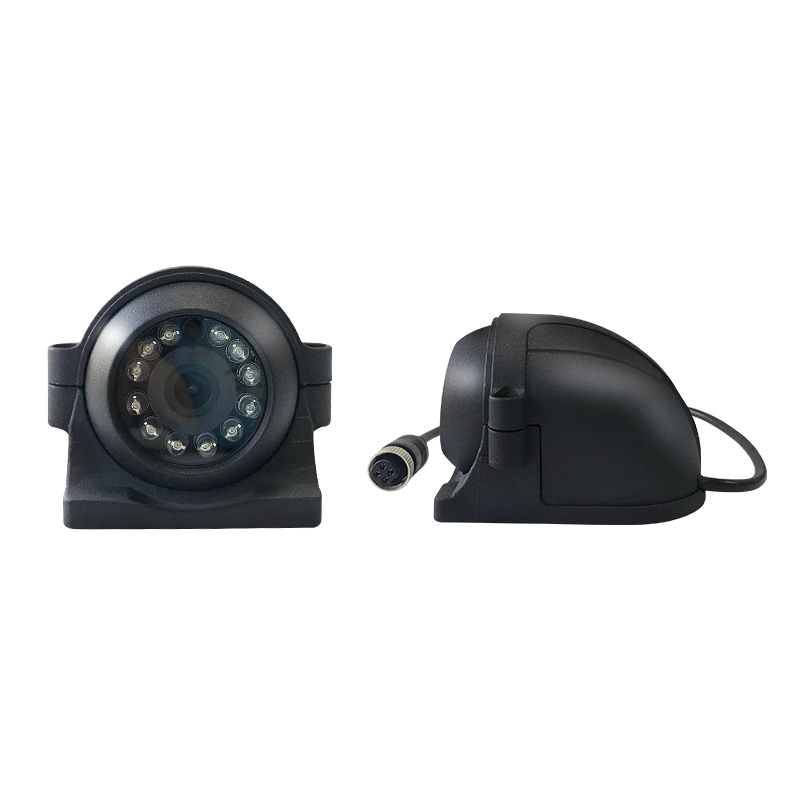

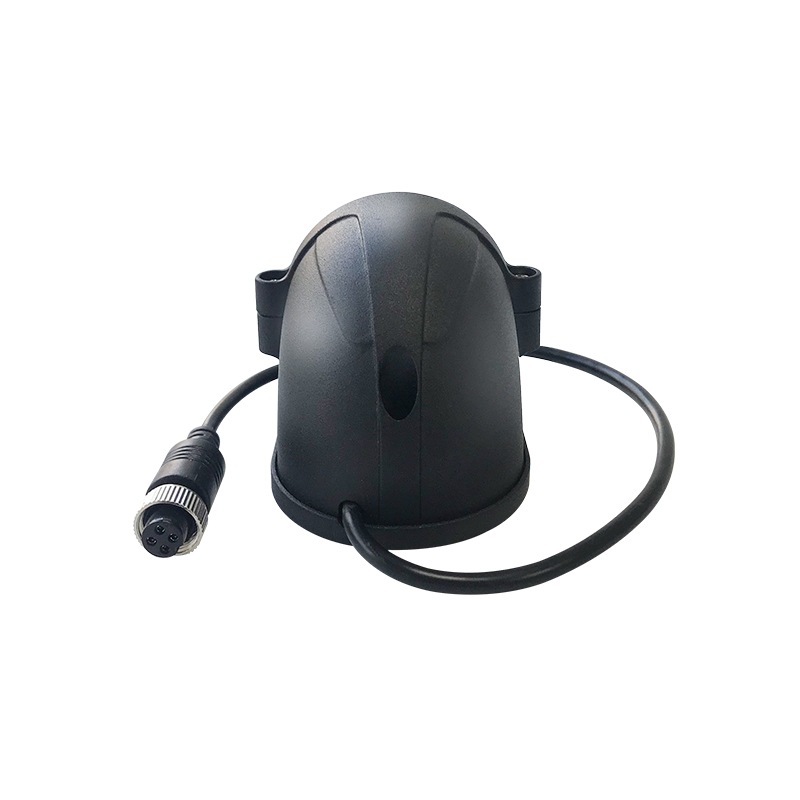

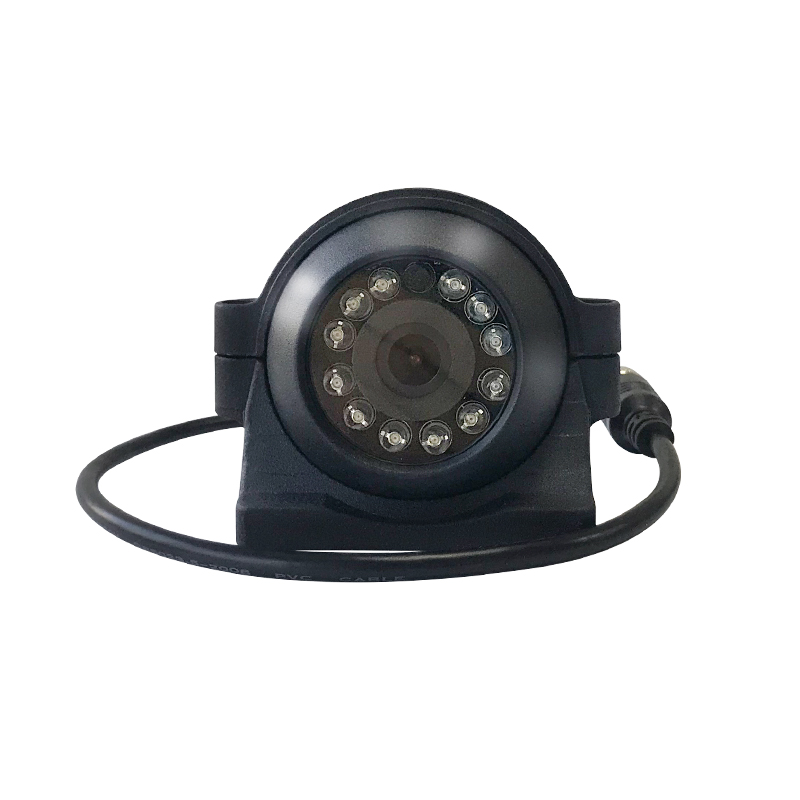

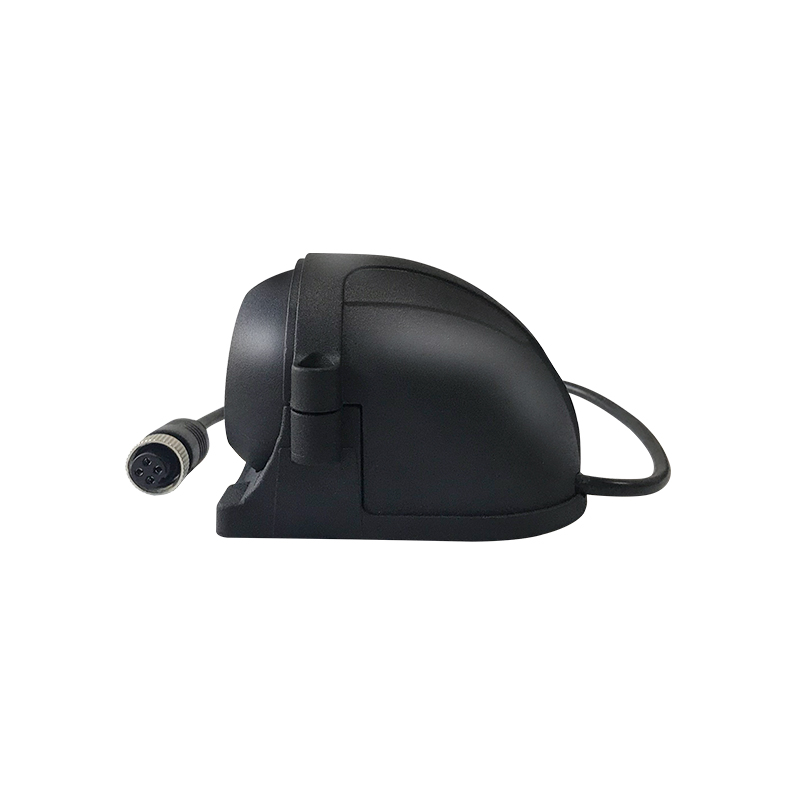

The side camera suits trucks, cars, and buses with universal compatibility and supports PAL NTSC systems. The durable design works in temperatures from -20℃ to 70℃.
This AHD Infrared Night Vision Camera offers high-definition 1080P resolution, a wide view angle , and IP68 waterproof grade for automotive safety.

The side camera suits trucks, cars, and buses with universal compatibility and supports PAL NTSC systems. The durable design works in temperatures from -20℃ to 70℃.
This AHD Infrared Night Vision Camera offers high-definition 1080P resolution, a wide view angle , and IP68 waterproof grade for automotive safety.

Items | Parameter description |
Image sensor | 1/2.9" |
DSP | FH8536H |
Horizontal resolution | 2.0 Megapixel |
TV system | PAL/NTSC |
Effective pixel | 1920(H)*1080(V) |
Minimum illumination | Color 0.05Lux, 0Lux with IR |
| S/N ratio | ≥52dB |
| Day/Night mode | EXT(default), AUTO, COLOR, B/W, Support IR CUT switching |
| Sync system | Internal |
Backlight compensation | Auto |
White balance | Auto |
| Electronic shutter | AUTO/1/50 (1/60) -1 (50, 000Sec) |
| WDR function | Digital WDR0 |
| Video output | AHD Standard, 1080P output |
| Lens | 2.8mm |
| IR leds Qty | 12pcs LEDs |
| IR distance | ≤8 meters |
| Waterproof grade | IP68 |
| Operating temperature | -20° to 70°C |
| Power supply | DV12V±10% |
| Power consumption | ≤3.5W |
Items | Parameter description |
Image sensor | 1/2.9" |
DSP | FH8536H |
Horizontal resolution | 2.0 Megapixel |
TV system | PAL/NTSC |
Effective pixel | 1920(H)*1080(V) |
Minimum illumination | Color 0.05Lux, 0Lux with IR |
| S/N ratio | ≥52dB |
| Day/Night mode | EXT(default), AUTO, COLOR, B/W, Support IR CUT switching |
| Sync system | Internal |
Backlight compensation | Auto |
White balance | Auto |
| Electronic shutter | AUTO/1/50 (1/60) -1 (50, 000Sec) |
| WDR function | Digital WDR0 |
| Video output | AHD Standard, 1080P output |
| Lens | 2.8mm |
| IR leds Qty | 12pcs LEDs |
| IR distance | ≤8 meters |
| Waterproof grade | IP68 |
| Operating temperature | -20° to 70°C |
| Power supply | DV12V±10% |
| Power consumption | ≤3.5W |
