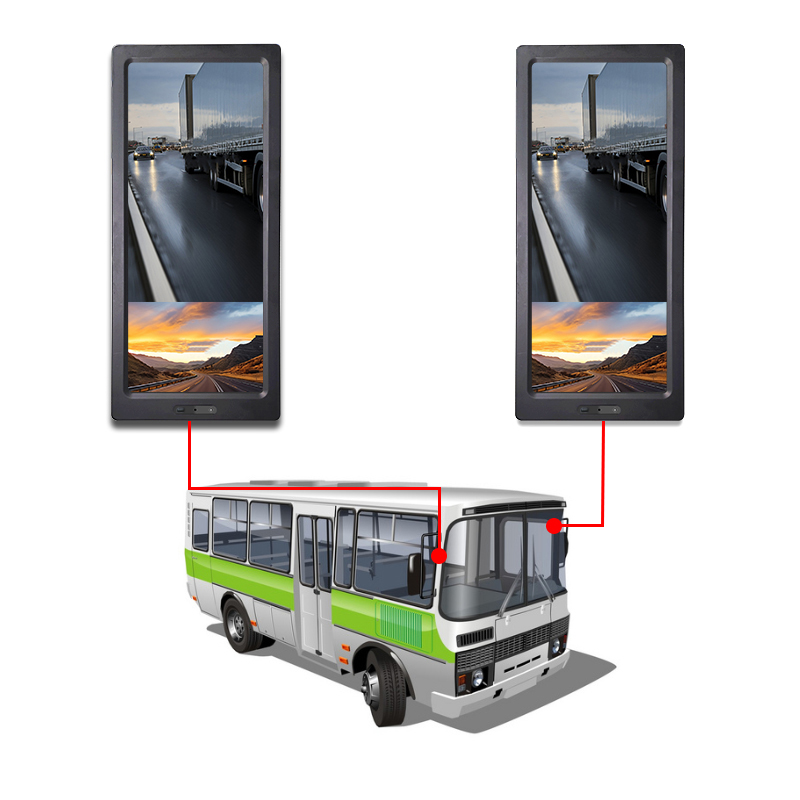

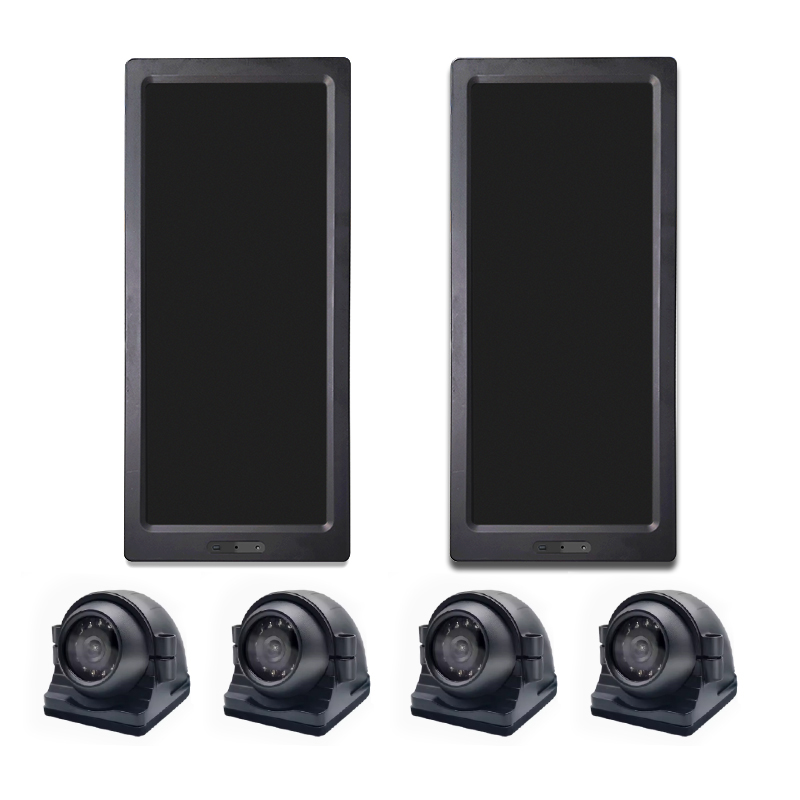

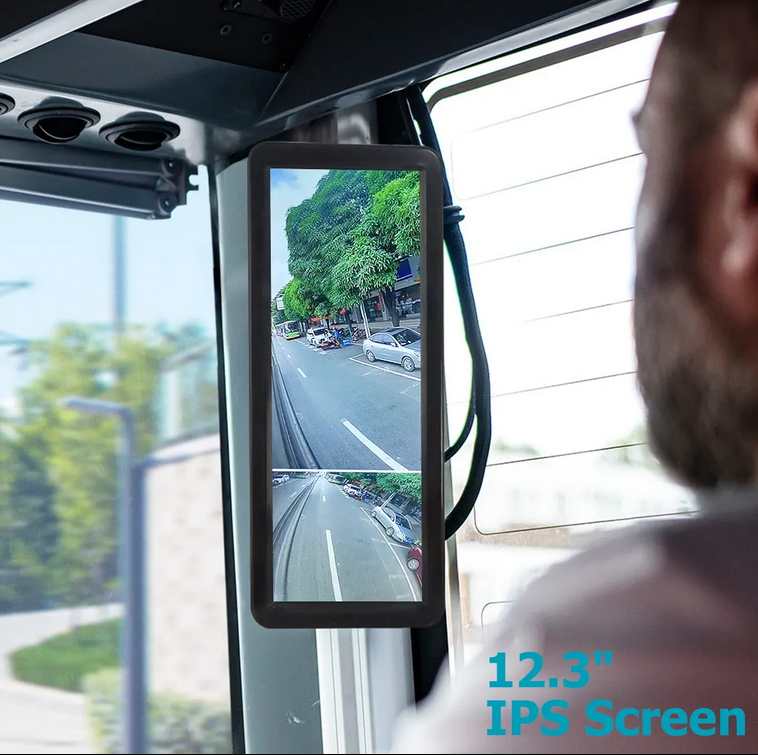

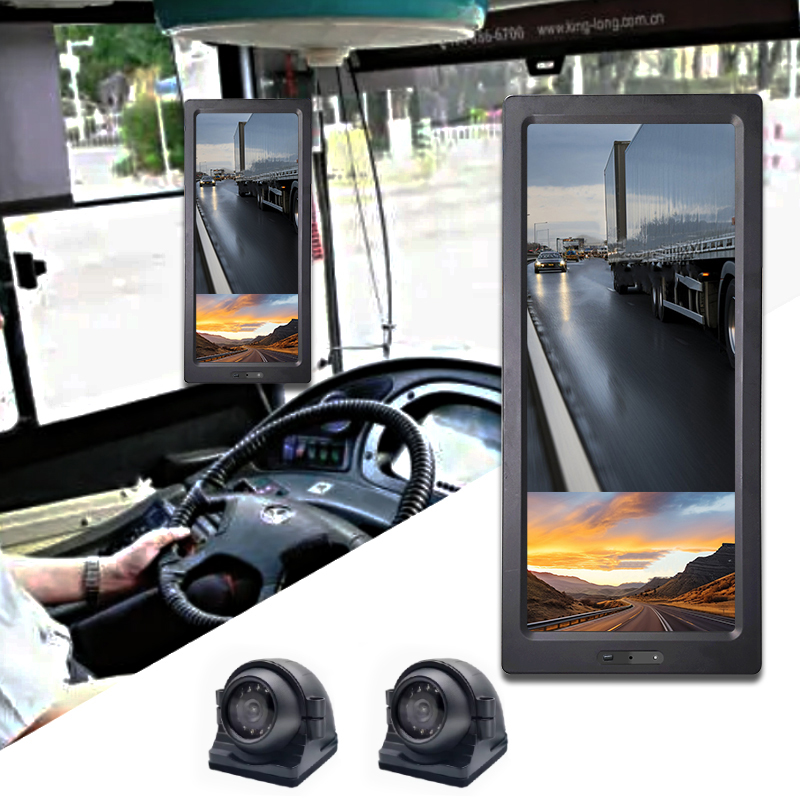

12.3 Inch Electronic Interior Installation Rear View Side Mirror Camera System Vehicle Reversing Aid System BSD and Cameras TF Card Storage for Coach Truck Bus

Core Features of 4CH AI MNVR

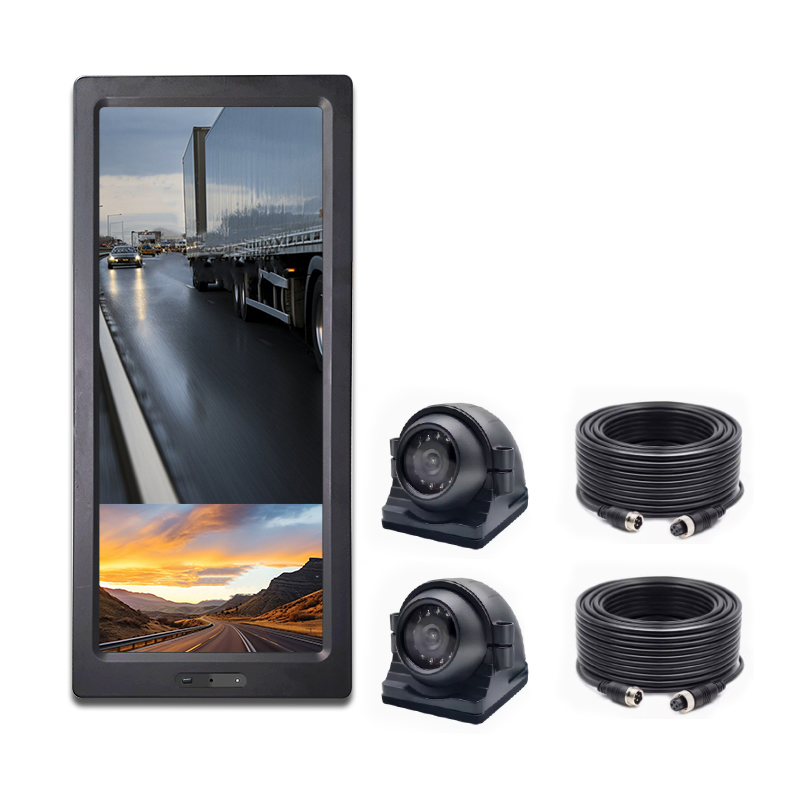

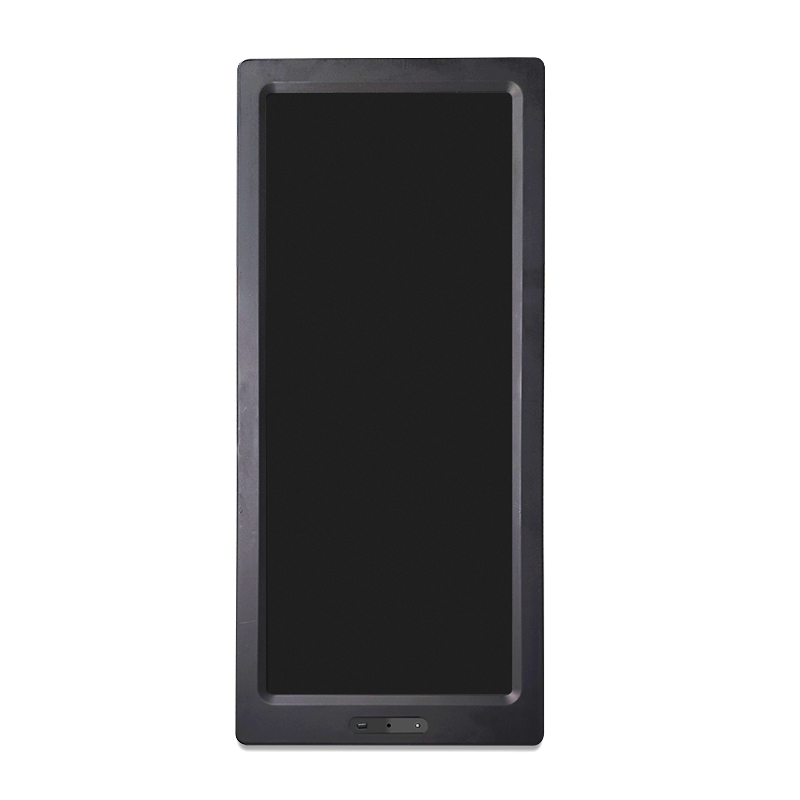

12.3inch TF card Electronic Rear Mirror DVR monitor

*chipset: hi3521D

*OS: LINUX

*Video compression: H.264

*Cameras: Max support 2* Cameras

* Display Resolution: 1920*1080,1280*720

*Camera Input: 2CH AHD/1080P, 960P, 720P, D1 (CVBS) video inputs

Compatible with CVBS and AHD signal mixed input

Compatible with PAL and NTSC hybrid inputs

*Card slot:Max support 1TB*1 TF card

*Alarm trigger:2set I/O trigger, support automatically trigger full screen display in 12-24V *AI function:4G,WIFI,GPS,BSD*2 (option)

*Voltage:DC12V-36V

*Power Watt:Naturally working status≤12W(Not Include the Camera)

*Working temperature:-30℃ to +80℃

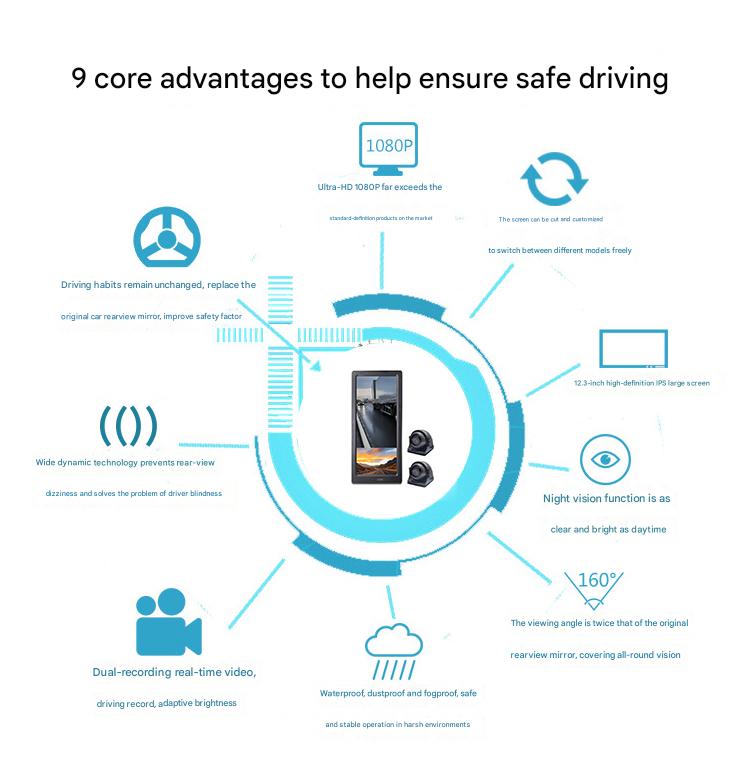

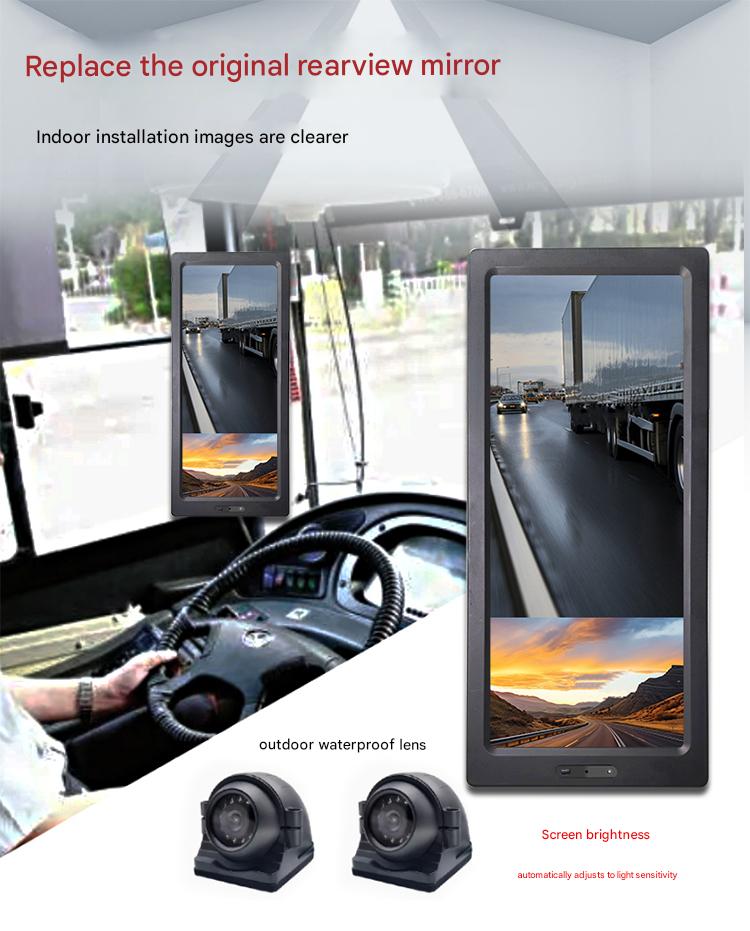

4g monitor wifi monitor

详情_05

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Lorries

School Bus

RV

Taxi

Freight Truck

Forklift

Omni Bus

Emergency & Rescue

Specification

Item		Parameter
Solution		Hi3521D
Language		Simplified Chinese, Traditional Chinese, English, Russian, Korean (other languages can be customized)
Video Compression		H.264/H.265
OSD		Support time and date, channel characters, split borders, vehicle information and other image overlays
Video and recording system	Video Input	Support 2 channels AHD1080P、960P、720P / 960H、D1（CVBS）and so on video signals mixed input； Compatible with PAL and NTSC mixed input
	Preview	Multi-picture mode combination preview, support manual / voltage trigger full screen display function
	Resolution	1920x720
	Recording resolution	1920x1080
	Recording quality	FHD,HD,Standard,Normal recording resolution are optional.
	Recording mode	Power-on recording
Audio	Input	Support 1Channel Audio input
	Output	Built-in Speakers(optional)
	Compression format	G.711u
AI algorithm	BSD functionality	BSD blind spot warning (optional)
Trigger input		1set I/O trigger, support automatically trigger full screen display in 12-24V
Storage	SD card	Support 2-1TB memory card，looping recording
	Upgrade method	Support TF card upgrade
	Storage method	Professional bare disk storage method: real-time storage, no frame loss, no missing seconds
Video Playback	Search	Can search least three days, one week, two weeks, one month or all；
	Playback	2 channels simultaneous playback, support pause, fast forward, backward
	Playback	Support X2, X4, X8 forward or backward
Power and consumption	Power Management	Adaptive wide power input, with protection functions such as low voltage, over voltage, reverse short circuit;
	Input voltage	DC:+12V ~ +36V
	Output voltage	+12V/2.5A ±1V
	Consumption	Normal working condition ≤ 12W (excluding camera)
Working Environment	Temperature	-30℃ to +70℃
Working Environment	Humidity	20% to 80%
