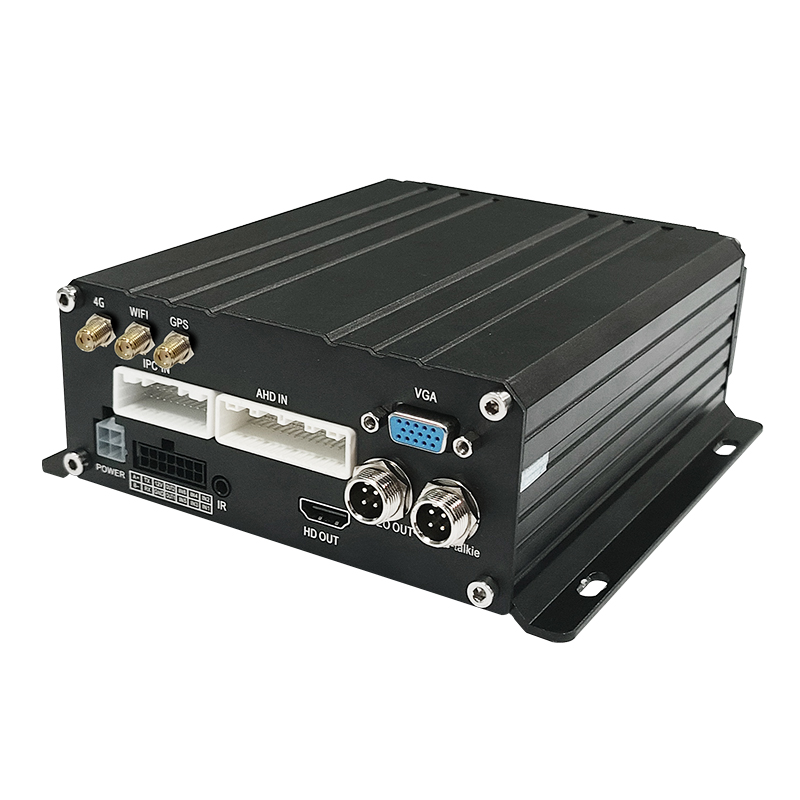

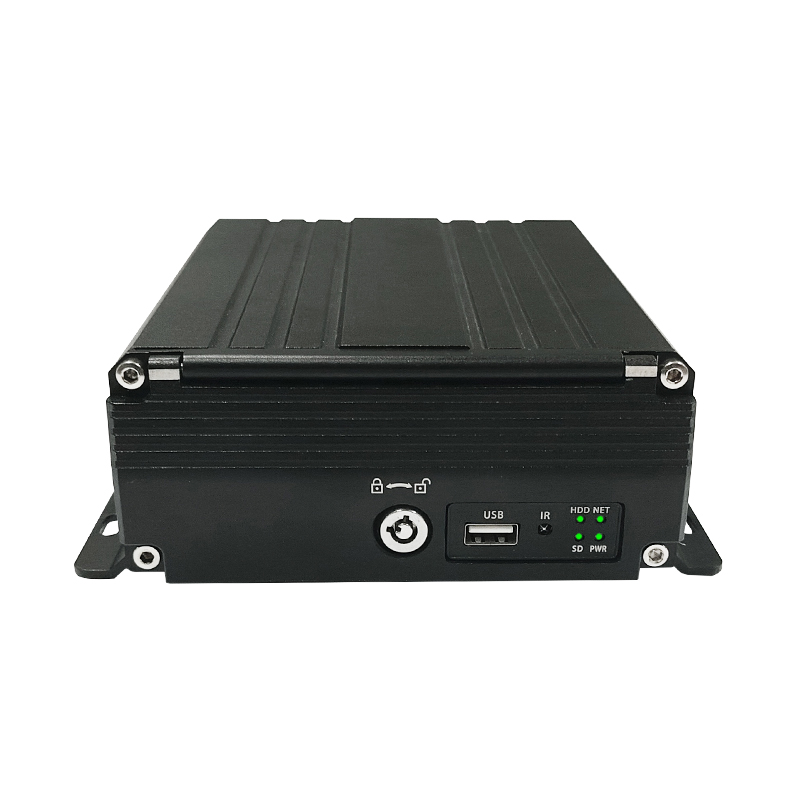

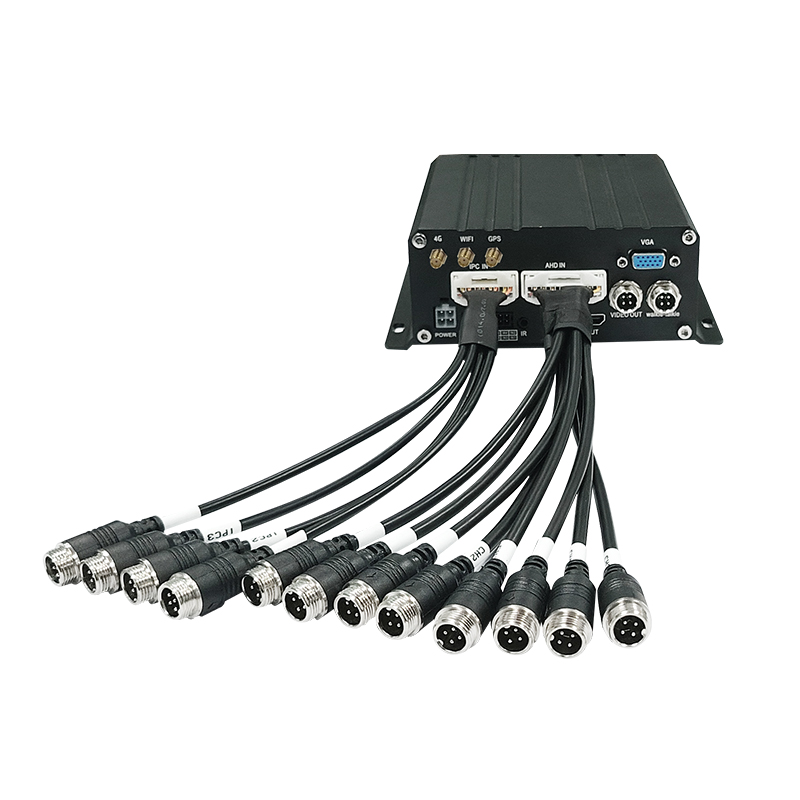

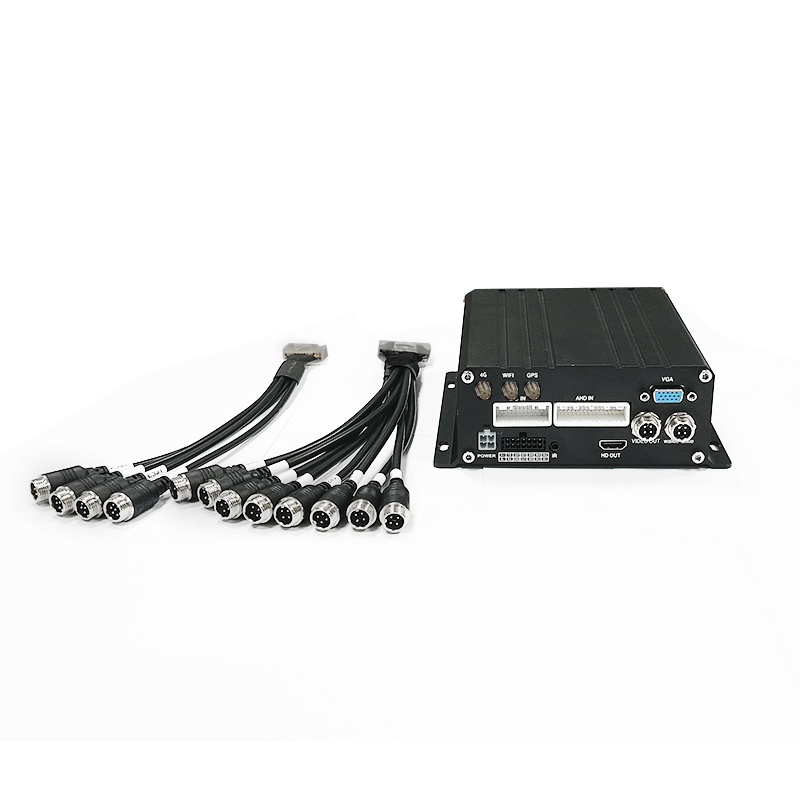

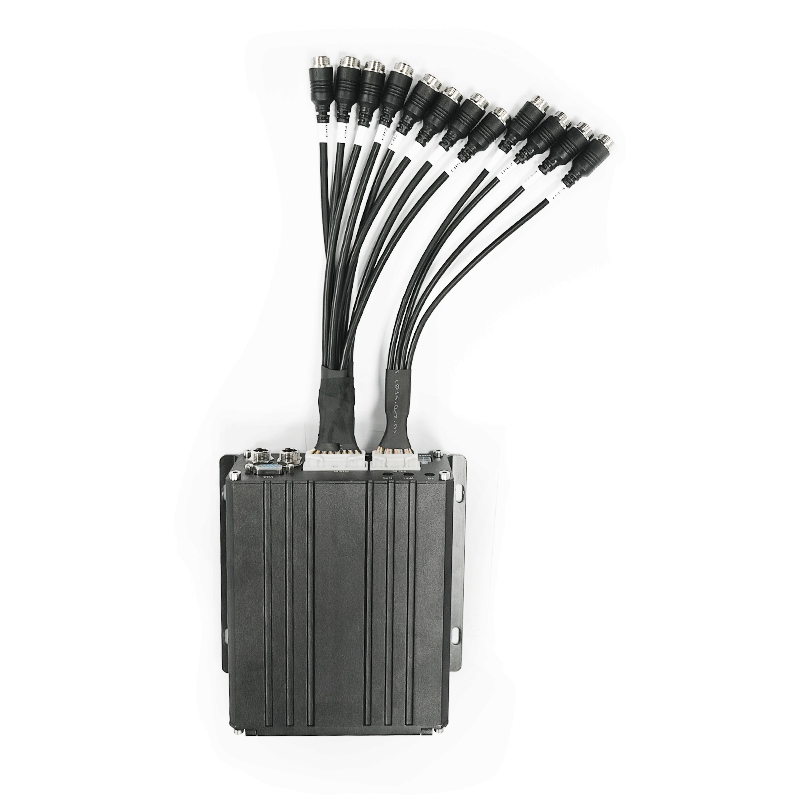

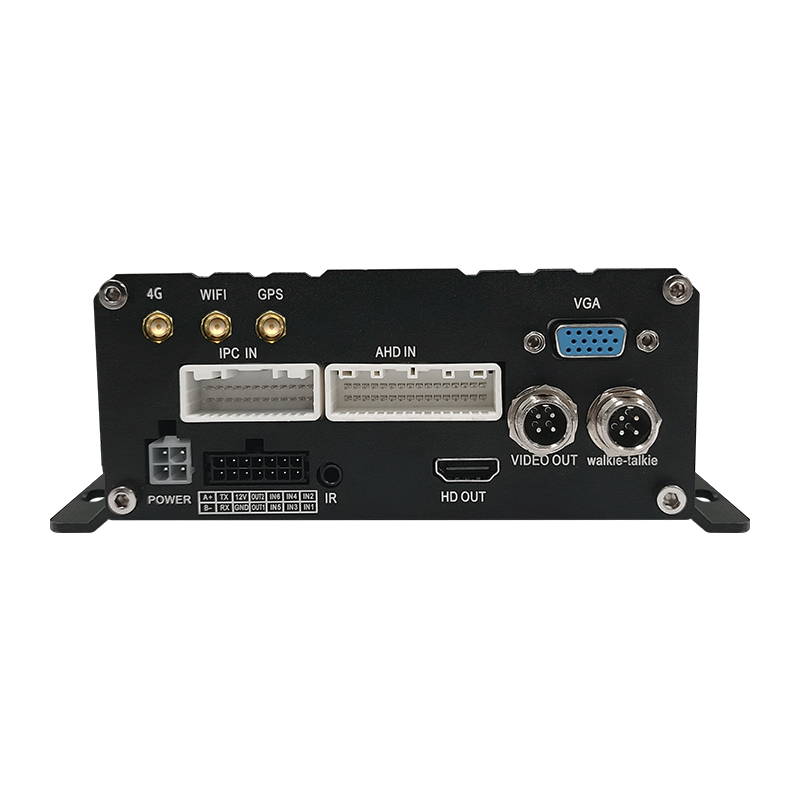

Core Features of 12CH AI MNVR

Core Features of 12CH AI MNVR

1. HiSilicon Linux system solution, H.264/H.265 compression mode, multi stream recording, high-definition recording effect up to 720P

2. 8V-36V adaptive wide voltage input range (automatic shutdown protection above 42V), ultra-low power consumption design, suitable for use in various vehicles

3. Professional car power protection design, non scalding, with international standard power polarity reverse protection, loss/over voltage/over current protection, and short circuit protection

4. Automatic trigger display function (IN1-IN6 trigger input function can be set, and the screen will automatically switch to display the corresponding image)

5. High resolution 1920x1080 (including video input, output)

6. Support AHD 8CH+4CH 2MP IPC camera connection input

7. Support multiple storage strategies such as multi disk cyclic storage, main stream storage, and small stream storage

8. Supports 4T hard drive and 1T SD card recording, uses aviation shock resistant materials to reduce data damage caused by vehicle vibration, and the product can adapt to more harsh road conditions

9. Rich variety of display modes, all of which can be independently set as startup screens to meet the special needs of different users

10. Advanced bare disk+pre partitioned storage technology solves the problem of easy damage caused by uneven disk writing, the problem of file fragmentation caused by repeated erasing, the problem of data loss caused by storage file system crashes, inability to find storage, and file garbled characters, and the problem of data loss caused by time synchronization, ensuring data integrity and effectiveness. The use of dedicated storage methods solves the problem of data confidentiality

11. Exclusive bare disk storage technology, perfectly solving the problems of video data leakage, loss of seconds, and ineffective storage for other products in the market

12. Each camera image can independently set brightness, contrast, saturation, chromaticity, and sharpness

13. Each camera screen can independently set the reversing marking line (users can adjust the position and width of the auxiliary line)

14. Each camera image can be independently set to move and zoom in, cutting unnecessary images around the video

15. Support top bottom left right margin image scaling adjustment for video output, adapting to full display of various screen images without being cut

16. Provide DC12V power output, which can provide constant voltage power supply for multiple peripheral devices such as cameras and displays

17. Real time high-definition video recording, 720P/D1 optional, adjustable frame rate and image quality

18. 4 alarm inputs (including door opening and closing, lighting, steering, braking, reversing, and various other types that can be configured), which can be linked to multiple responses

19. 2 alarm outputs, supporting linkage of sound and light alarms, oil and power cut-off controllers, etc

20. Support enabling/disabling OSD character overlay function (time, date, channel number, vehicle information, etc.)

21. Supports multilingual menus such as Simplified/Traditional Chinese, English, Korean, Russian, etc. (customizable menus for other languages)

22. Support customization of startup logo

The following optional features are available for purchase:

1. A powerful client program that provides real-time monitoring and listening of audio and video, two-way voice intercom, playback, video recording, high-definition screenshots, and other functions

2. Support the expansion of UPS capacitors, which can continue to work for a few seconds in case of sudden abnormal power outage, ensuring the normal storage of video data

3. Support module expansion such as 3G/4G/WIFI/GPS/BD/GLONASS; Mobile and PC remote monitoring can be achieved through 3G/4G/WIFI (real-time video, monitoring, intercom, broadcasting,video query, playback, download; parameter settings, firmware upgrade)

4. Support the expansion of AI intelligent algorithm functions such as ADAS, DMS, BSD, etc

5. Support expanding AHD high-definition output 1080P/251080P/30720/25720P/30 with adjustable resolution; (AHD output devices do not have HDMI output)

6. Support customized connection and expansion of other devices using serial protocols such as RS232 and RS485

7. Customization can be made according to customer functional needs

8. Support passenger flow statistics cameras

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Freigt Truck

School Bus

RV

Taxi

Rail Transit

Forklift

Bus

Emergency & Rescue
